The Future of CSS
The Future of CSS
...or at least, some of it.
- Images!
- Lists!
- Flexbox Layout!
- Grid Layout!
- Values!
- Selectors!
- Maybe more?
- Q&A
Image Values
Defines several useful image-related features.
Should enter Last Call next week, and CR by the end of the year!
Gradients have changed over time...
- Linear gradients now use bearing angles (0deg is N, 90deg is E)
- Linear gradient keywords are now "
to <side-or-corner>
"
- Corner-to-corner gradients are now "magic".
- Radial gradients can be explicitly sized.
Use an element as an image!
The image()
function
Basically a souped-up url()
background: image("foo.webp", "foo.svg", "foo.png", blue);
background: image("arrow.png" ltr);
background: image(rgba(0,0,255,.2)), url(foo.jpg);
A few other bits
image-resolution
- Specify the resolution of the image, so you can use high-res images (for printing) that are sized properly.
image-orientation
- Rotate an image by 90deg increments. This affects layout, unlike
rotate()
transforms.
object-fit
, object-position
- Size and position an image within its content box.
Lists!
Revival of an old 2003 spec
- Defines the
::marker
pseudo-element
- Lets you directly style/position/etc the marker
- Defines 100+ new list styles
- Lets authors define their own list style
Defining your own list-style
@counter-style leaves {
type: repeating;
glyphs: url(leaf1.jpg) url(leaf2.jpg) url(leaf3.jpg);
}
@counter-style binary {
type: numeric;
glyphs: "0" "1";
}
Defining your own list-style
@counter-style dice {
type: additive;
additive-glyphs: 6 ’⚅‘, 5 ’⚄‘, 4 ’⚃‘, 3 ’⚂‘, 2 ’⚁‘, 1 ’⚀‘;
suffix: ’‘;
}
⚀ One
⚁ Two
⚂ Three
...
⚅⚄ Eleven
⚅⚅ Twelve
⚅⚅⚀ Thirteen
Flexbox!
Basically, display:block for applications.
Dumps much of the text-related complication in favor of simpler, more useful abilities.
Is nearly done being rewritten right now, and is currently being re-implemented in Chrome (other browsers should follow shortly).
Thousands of household uses!
Combining an input and a button
<div style="display: flexbox;">
<input style="width: flex(); display: block;">
<button>foo</button>
</div>
Thousands of household uses!
Horizontal navigation bar
<style>
ul { display: flexbox; }
li { width: flex(); }
</style>
<ul>
<li><a>Products</a></li>
...
<li><a>Training</a></li>
</ul>
Thousands of household uses!
Accordions
<div class=accordion>
<h1>First section</h1>
<section>Cool stuff to show in this section</section>
<h1>Second section</h1>
<section>More cool stuff for the second section</section>
...
</div>
<style>
.accordion {
display: flexbox;
flex-flow: column;
flex-pack: start;
}
.accordion > section {
height: 0;
overflow: hidden;
}
.accordion > section.active {
height: flex(1);
}
<style>
Grid Alignment!
Finally, a layout system designed for pages.
Slice the page into cells, and position elements into those cells.
No extraneous markup, no source-order dependence, fully flexible.
Grid Alignment!
grid-template: "a b"
"c b"
"d d"
"e e";

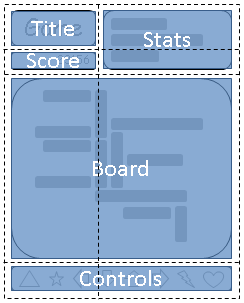

Grid Alignment!
grid-template: "a d"
"b d"
"c e";
Values & Units
http://dev.w3.org/csswg/css3-values/
This spec defines all the basic value types that CSS uses across its specs
Also defines the syntax used in property descriptions, if you ever wondered what the hell "&&" meant in a spec.
Some useful new units
rem
is the em
from the root element
ex
is relative to the font's x-height, similar to the em
ch
is the width of the "0" (an 'average character')
vw
, vh
units are relative to the size of the window
The calc() function
Lets you do math in CSS, combining things that are comparable
calc(50% + 20px)
calc(100% / 7)
The attr(), cycle() functions
attr()
lets you pull values from attributes on the element
Useful for implementing the UA stylesheet, or for styling based on data-*
attributes
width: attr(data-size as px, 100px);
cycle()
takes several values, and "cycles" between them with each nested use
em { font-style: cycle(italic, normal); }
ul { list-style-type: cycle(circle, square, dot); }
Column pseudos
In HTML, the column of a cell is indicated implicitly, rather than directlly through nesting. This makes it impossible to style an element based on its column, except for the 4 properties that the spec allows <col> to have.
td:col(col.foo)
selects the cells within the column that matches "col.foo
"
td:nth-col(n)
and td:nth-last-col(n)
work in the expected way
Link pseudos
:any-link
is :link
done right - matches both visited and unvisited links
:local-link
matches links to elsewhere in the same page
:local-link(n)
matches based on subsets of the path - :local-link(0)
looks only at the domain, :local-link(1)
looks at the domain and the first segment of the path, etc.
Time pseudos
Only useful for presentation formats that are time-based, like karaoke captions in an HTML <video> or a screen reader
:current
matches the current active element
:past
and :future
matches elements that have already been passed, or haven't been hit yet, respectively
video::cue(:past) { color: red; }
video::cue(:future) { color: white; }
/* Bouncing ball left as an exercise for the reader */
The Reference Combinator
Lets you follow IDREF attributes in the selector, like <label for=foo>
label:hover /for/ input { outline: thick dotted red; }
CSS Variables!
Variables! In CSS! OMG!
A common request for literally over a decade.
Why so long?
Previously, discussion was paralyzed by indecision and argument.
Now we have very rough agreement on the solution, and are starting experimental implementations.
Var Example
html {
data-header-color: #006;
data-main-color: #06c;
data-accent-color: #c06;
}
a { color: data(main-color); }
a:visited { color: data(accent-color); }
h1 {
color: data(header-color);
background: linear-gradient(data(main-color), transparent 25%);
}
CSS Nesting!
Stylesheets often have tons of repetition in the selectors.
"#main > header > h1", "#main > header > h1 > a",
"#main > header > h1 > a:visited", etc.
Verbose, hard to read, prone to hard-to-see errors
Old and Busted
#main > header > h1 {
font-size: 2em;
background: blue;
color: white;
}
#main > header > h1 > a {
color: #ddf;
}
#main > header > h1 > a:visited {
color: #fdf;
}
Nesting Example
#main > header > h1 {
font-size: 2em;
background: blue;
color: white;
& > a {
color: #ddf;
&:visited {
color: #fdf;
}
}
}
Just syntax sugar for the long-form stuff.
Again, CSS preprocessors led the way.
Shorter stylesheets, better organization mean faster app development.
Explicitly indicates scoping opportunities, which might be useful for browser
perf
